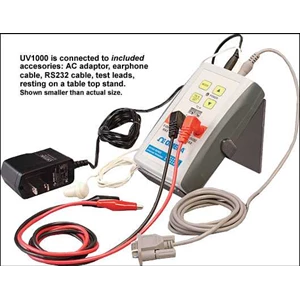

OMEGA Process-Signal-to-Speech Converter UV1000

Universal Verbalizer OMEGASAYS® Process-Signal-to-Speech Converter • Verbalizes 0 to 10 Vdc Voltage, 0 to 20mA Current, and Type K Thermocouple Inputs in Engineering Units • Portable, Handheld High Performance Design • Built-In Speaker and Earphone Jack • Over 100 Built-In Engineering Units to Choose From • RS232 PC Interface Allows User to Configure the Unit • High and Low Alarm, Programming • Command/ Continuous Speech Mode Selection • Verbalizes Signals While Connected to Other Measurement and Control Devices • Front Keypad Provides Input Selection, Command Talk and Volume Control • Powers From 2 " AA" Size Batteries or DC Adaptor Input ( Batteries and AC Adaptor are Included) • Decorative Table Top Stand included for ease of operation • NOT INTENDED TO BE USED IN MEDICAL APPPLICATIONS OR USED ON HUMANS Specifications Voltage Input: 0 to 1 Vdc, 0 to 5 Vdc, 0 to 10 Vdc Current Input: 0 to 20 mA, 4 to 20 mA Analog Input Accuracy: 0.2% of full scale Thermocouple Input: Type K, SMP connection Thermocouple Range: -100 to 871° C ( -148 to 1600° F) Thermocouple Input Accuracy: 2° C ( 3.6° F) Command/ Continuous Talk: Set via slide switch High & Low Alarm Set Points: Set via RS232 PC interface Engineering Scale: Set via RS232 PC interface Engineering Unit: Set via RS232 PC interface Volume Control: Set via keypad, 8 levels at 4 dB intervals Power: 2 " AA" size batteries, or AC adaptor ( both included) Power Indication: Red LED Low Battery Indication: Red LED, flashing Speech Sampling Rate: 8 KHz Speaker: Built-in, 8 © Battery Life: 40 Hours: Continuous talking mode ( alkaline battery) 160 Hours: Continuous talking mode ( lithium battery) Operating Ambient Temperature: 0 to 50° C ( 32 to 122° F) Operating Relative Humidity: 0 to 95% RH ( non-condensing) Dimensions: 120 L x 76 W x 32 mm D ( 4.75 x 3 x 1.25" ) Weight: 250 g ( 0.55 lbs)
